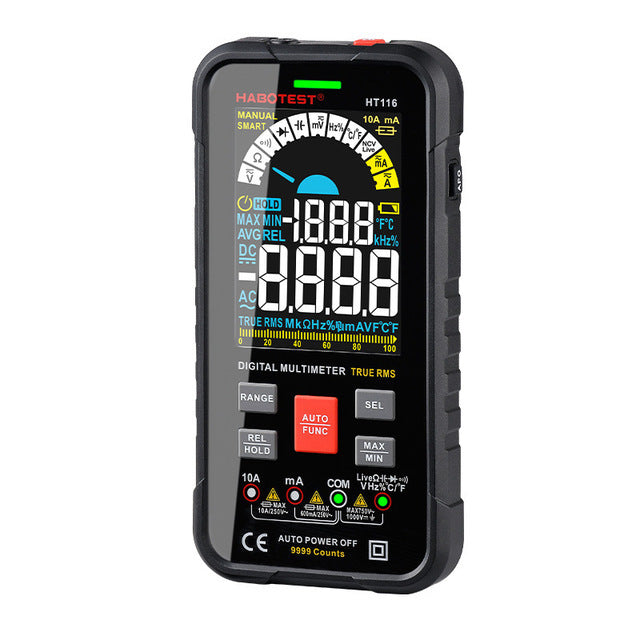

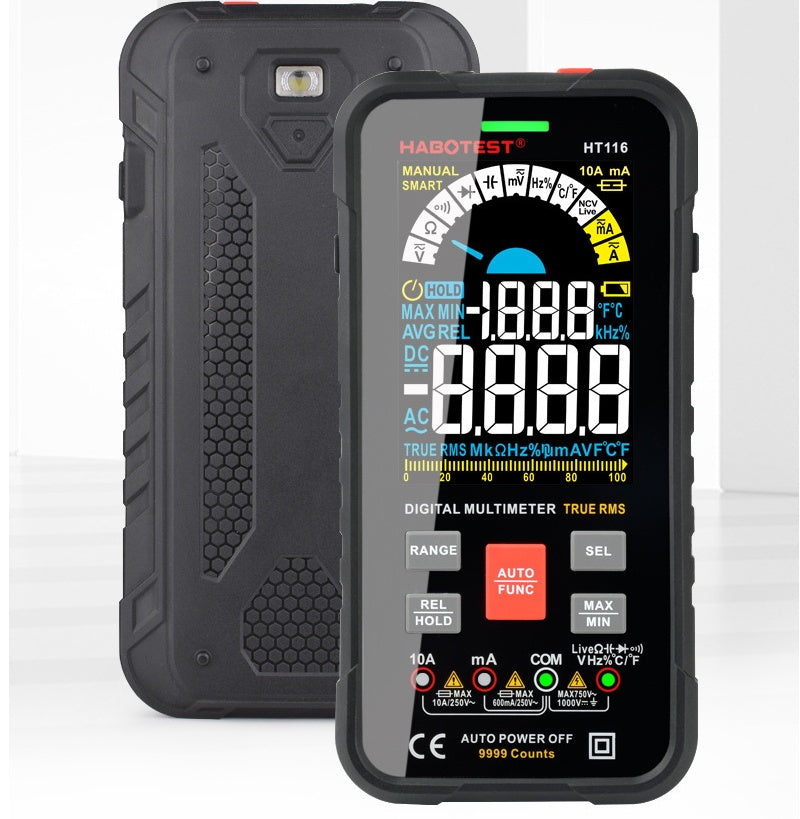

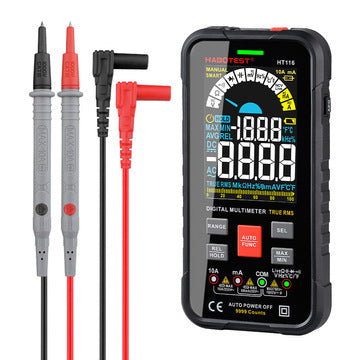

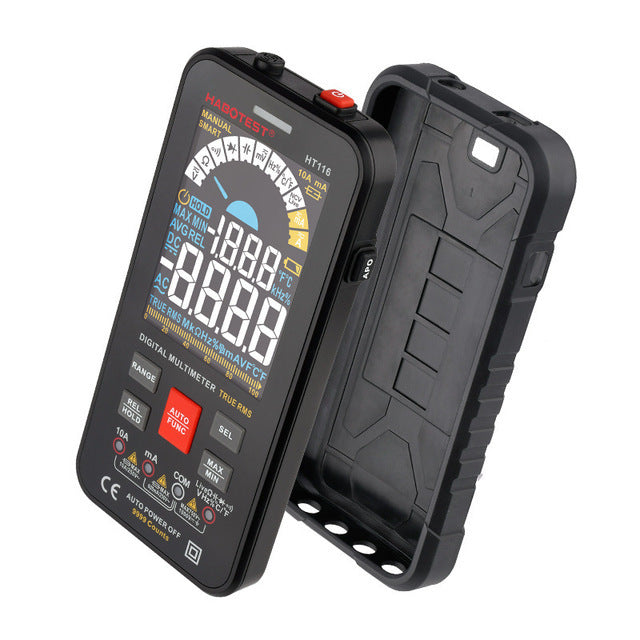

Automatic Burn-proof Digital Multimeter

Automatic Burn-proof Digital Multimeter

£32.46
£32.46
Sale Sold out
Color

Trusted Couriers

komersh.om

Shipping & Returns

Free shipping and returns available on all orders!
We ship all orders within 5-7 business days!

SKU : CJWL124706801AZ

Collections : Computer and Office, Networking, Office Electronics,

Availability : In Stock

View full details

Product information:
Type: Card type multimeter

Style: Handheld Multimeter

Use: Household

Dimensions: 165*84*23mm

Battery type: 3*1.5V AAA

Net weight: 290g

Specification: HT116-Chinese packing manual, HT116-English packing manual

Fonctions

Gamme

Précision

Tension CC

99.99mV/999.9mV; 9.999V/99.9V/1000V

±(0.5% + 3)

Tension CA

99.9mV/999.9/mV; 9.999V/99.9V/750V

±(0.8% + 3)

Courant continu

9.999mA/99.99mA/999.9mA

±(0.8% + 3)

9.99A

±(1.2% + 3)

Courant alternatif

9.999mA/99.99mA/999.9mA

±(1.0% + 3)

9.99A

±(1.5% + 3)

Résistance

99.99/999.9ohm/9.999k/99.99k/999.9kohm

±(0.8% + 3)

9.999m/99.99mOhm

±(1.2% + 3)

Capacité

9.999/99.99/999.9nF/9.999/99.99/999.9uF

±(4.0% + 3)

9.999mF/99.99mF

±(5.0% + 5)

Fréquence

99.99/999.9/9.999k/99.99k/999.9kHz/9.999mHz

±(1.0% + 3)

Droit

01.%-99.99%

±(1.0% + 2)

Température °C/°F

-40 ~ 1000 °C; -40-1832 °F 2 °C

Compte

9999 compte

Affichage

VA Écran D'affichage Couleur

Fonction intelligente (tension ca/cc,

Résistance et continuité)

V

Identification automatique de l'entrée actuelle

V

Mesure Relative

V

Max/Min/Avg.

V

NCV/Live/test de continuité

V (alarme sonore et lumineuse)

Test de diodes

V (alarme sonore)

Bargraphe/maintien des données/True RMS

V

Fusible Brûlant Rapide/

V

Prise d'entrée indication LED

V

Basse batterie indication

V

Mise hors tension automatique/lampes de poche

V

Alimentation

3 piles AAA (non incluses)

Poids du produit

Approx.230g

Taille du produit

83x23x165mm

Taille De l'emballage

170x95x50mm

Poids Du paquet

470g

Cote de sécurité

EN61010-1,-2-030 EN61010-2-033, EN61326-1 CAT III 1000V CAT IV 600V

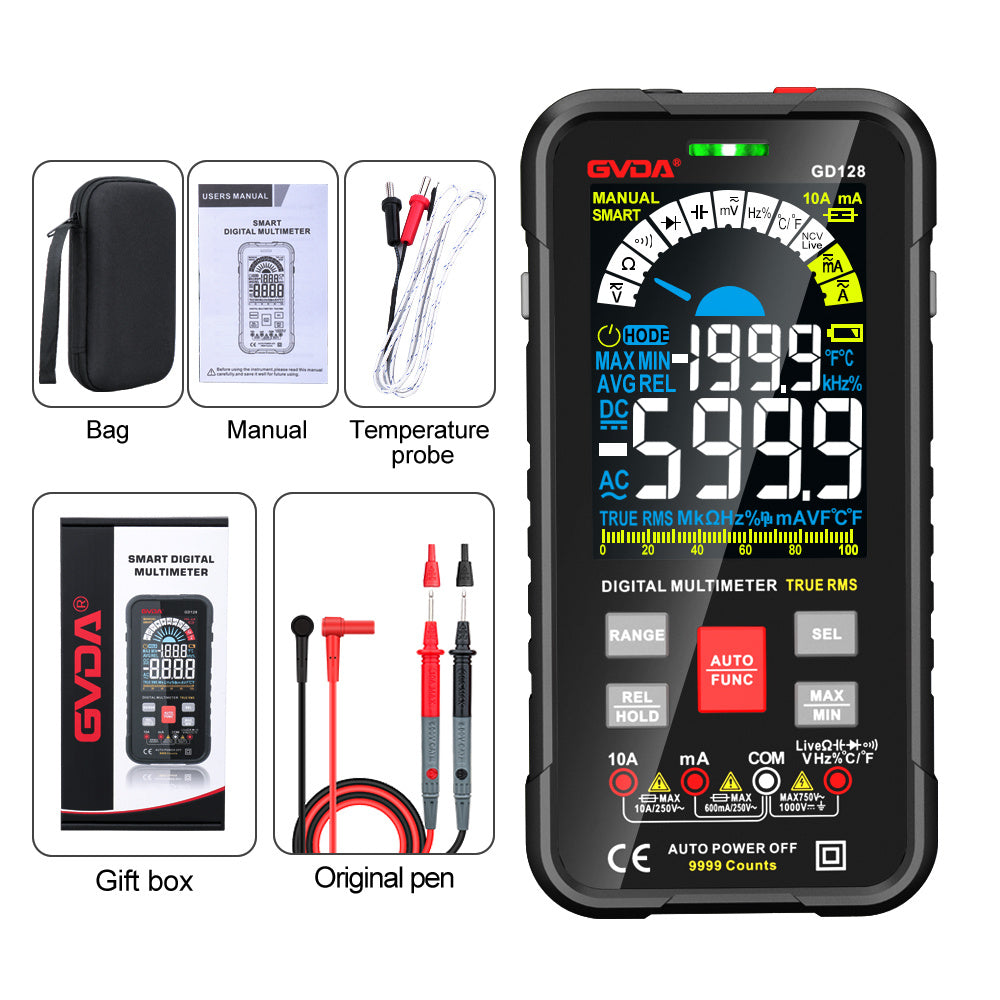

Contenu de l'emballage

Multimètre 1pc/câble de stylo 1pc/sac en tissu 1pc/sonde de Thermocouple 1pc


Features:

1) High-definition LCD monitor with larger VA color
2) Maximum display: maximum 9999 count display
3) Automatic range and manual range
4) Sampling rate: about 3 times per second
5) Display on the range: the highest digit indicates "OL"
6) Low voltage display: low battery indicator
7) Working environment: (0-40)℃, relative humidity <80%
8) Power supply: 3 x 1.5V batteries (not included)
9) Input socket indicator
10) Stable performance, high accuracy, high reliability, clear readings, and overload protection.



Packing list:

Multimeter x1
Battery*1
Test lead*1
Manual *1
